Montreal's subsurface doesn't read textbooks. Within a kilometer, you can transition from dense Lodgement Till over bedrock on the island's higher terraces to the soft, hypersensitive Leda Clay that underlies much of the low-lying areas east of the city center. Running a Standard Penetration Test here without adjusting for that variability produces N-values that look clean on a log but miss the real story. The Champlain Sea deposited these silty clays roughly 10,000 years ago, and when undisturbed they can hold a 12-story structure; remold them during sampling and they flow like heavy oil. Our field crews track blow counts every 150 mm through the split spoon, not just the total N, so the geotechnical engineer can spot a thin sand lens or a desiccated crust that changes the foundation design entirely. In a city where winter frost can reach 1.5 m depth and spring thaw saturates the upper clay, getting the SPT right means drilling through conditions that shift with the seasons.
An uncorrected SPT N-value in Montreal's Champlain Clay can underestimate settlement by a factor of two if overburden pressure and groundwater aren't accounted for in the design.
Service characteristics in Montreal
Critical ground factors in Montreal
A six-story residential project on Sherbrooke Street East ran into trouble when preliminary SPT refusal at 6 m was interpreted as bedrock. The contractor priced the excavation assuming a standard mat foundation. During construction, the excavator hit a large glacial erratic boulder perched within the till—not bedrock—and the actual refusal depth was 13 m below that boulder. The revised foundation required drilled shafts socketed into the real rock, adding six weeks and a significant change order to the schedule. That single boulder, undetected because the first SPT blow count jumped from 18 to refusal in one interval, changed the entire substructure cost. In Montreal's glacial terrain, isolated cobbles and boulders are common, and a single SPT refusal reading should trigger offset boreholes or a complementary CPT sounding to confirm whether the refusal is continuous rock or a random obstruction.
Our services
The SPT service we deliver in Montreal spans every stage from rig mobilization through to final corrected N60 logs. Our internal drilling teams are well acquainted with the island's geology, and our laboratory carries ISO/IEC 17025 accreditation for subsequent classification and strength tests.
SPT Borehole Drilling and Sampling

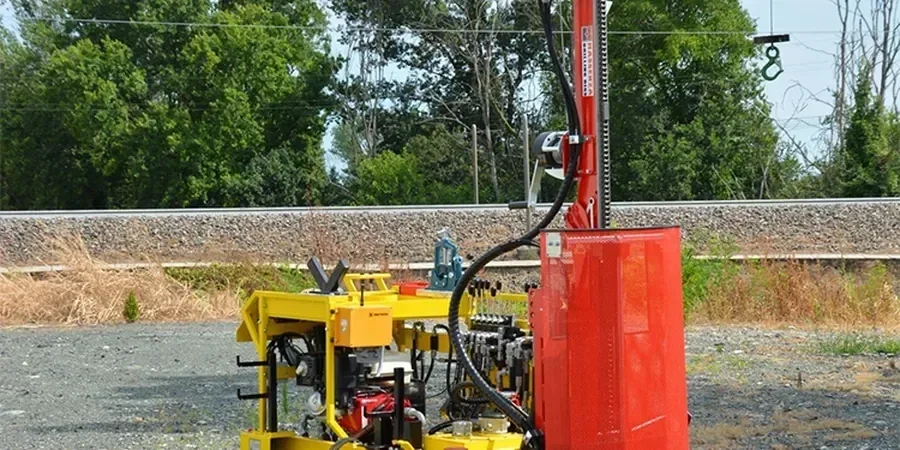

For confined urban locations, we deploy both track-mounted and compact access rigs. Throughout the profile—Champlain Sea clays, tills, and weathered rock—continuous SPT sampling is conducted, with split-spoon recovery recorded per interval.
N-Value Correction and Site Classification
The N60 correction is energy‑calibrated and incorporates overburden, rod length, and borehole diameter effects. Seismic site classification (A through E) per NBCC Table 4.1.8.4.A is determined using the corrected blow counts and is cross‑validated with shear wave velocity data.
Integrated Geotechnical Reporting
Our final borehole logs present USCS soil classifications, groundwater conditions, and initial bearing capacity estimates. Reports also feature SPT‑driven settlement calculations and guidance on choosing shallow or deep foundations.
Top questions
How much does an SPT investigation cost for a typical Montreal residential lot?
A typical single‑family lot with two 10‑m boreholes (including island mobilization, drilling, SPT at 1.5‑m spacing, and a factual report with logs and groundwater data) usually falls between CA$770 and CA$990 per borehole. Challenging access, greater refusal depths, or continuous sampling push costs toward the upper limit.
Why do SPT N-values in Montreal's east end clay come in so low compared to other cities?
Eastern Montreal’s Champlain Sea (Leda) Clay is normally to lightly overconsolidated, with water contents frequently at or surpassing the liquid limit. In the top 15–20 m, uncorrected N‑values of 2 to 5 are typical. Sensitivity locally exceeds 30, so drilling disturbance can further lower penetration resistance. Using mud rotary techniques and careful spoon driving helps maintain the clay's natural structure.
How deep do SPT boreholes need to go for a mid-rise building in downtown Montreal?
Borehole depths are typically 20–30 m, or until three successive SPT intervals in competent rock indicate refusal (N > 50). Near the mountain, downtown sites often encounter Trenton Group limestone or shale at shallow depths, whereas river‑adjacent areas may need to drill through alluvium before reaching till or bedrock. Per NBCC, boreholes must penetrate below the zone of significant stress influence—for a 10‑story raft foundation this depth can be 1.5 to 2 times the foundation width.
What's the difference between raw N, N60, and N1(60) in your Montreal SPT reports?
Raw N is the field blow count for the last 300 mm of spoon penetration. N60 adjusts that raw value to a hammer energy of 60% of free‑fall energy, based on our automatic trip hammer’s measured or assumed energy ratio. N1(60) further normalizes N60 to an effective overburden of 100 kPa—this step is essential in Montreal’s soft clays, where overburden correction factors can exceed 1.5 below 10 m depth. Our reports include all three quantities, enabling the designer to select the correct correlation.
