Anchor performance in Montreal shifts dramatically depending on which side of the Saint Lawrence Lowlands you are working. Near the Old Port, quaternary deposits of Champlain clay dominate—soft, sensitive, and prone to creep under sustained load. But cross into the NDG escarpment or up toward Mount Royal, and you hit dense glacial till with cobbles and boulders that demand entirely different drilling and grouting assumptions. A passive anchor that holds in the eastern clay belt can fail in the western rock transition if the bond zone isn't recalibrated. Our design approach treats these transitions as the rule, not the exception. We start with test pits to confirm stratigraphy at the anchor head and then apply slope stability analysis when the excavation face is near a property line.
Montreal's stiff fissured clay crust can double the bond capacity of a passive anchor—if you respect the drainage boundary at the excavation face.
Service characteristics in Montreal
Critical ground factors in Montreal
With an elevation of merely 7 meters above sea level in the Centre-Sud district, Montreal's anchor design is primarily challenged by the Charlevoix seismic zone, a 5.8 magnitude source impacting the St. Lawrence corridor. For soft soil sites, NBCC spectral accelerations for a 2% in 50-year event may surpass 0.6g, transforming a typical tieback wall into a system needing to withstand cyclic degradation at the grout-soil interface. In Champlain Sea clay, seismic-induced pore pressure increases reduce effective stress in the bond zone, a phenomenon observed in post-earthquake studies of similar eastern Canadian clays. To mitigate this, we limit mobilized bond stress to a small portion of the peak value and, where groundwater chemistry—often saline near the port—promotes corrosion, we implement sacrificial anode protection.
Our services
In Montreal, anchor design extends beyond simply verifying pull-out capacity. It demands a comprehensive understanding of the integrated behavior among the anchor, wall system, and retained soil as a unified mechanism. Our local services are built around this holistic approach.

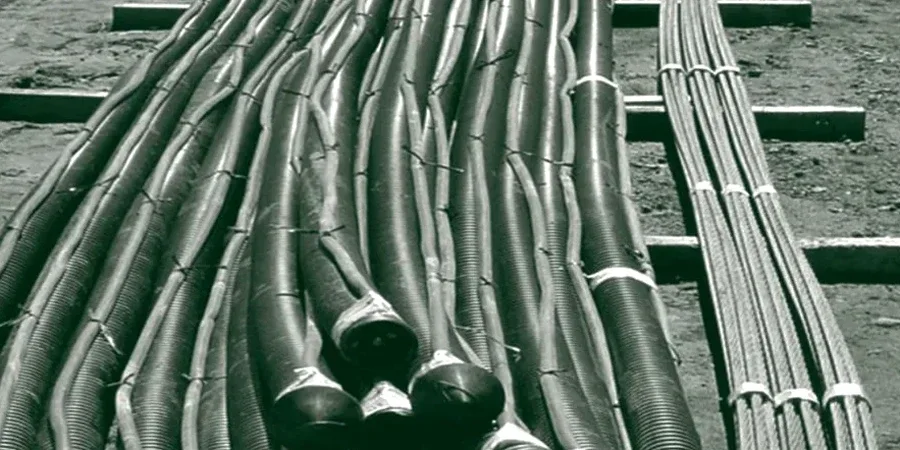

Permanent tieback anchors
Designed for basement excavations and infrastructure cuts where anchors serve throughout the structure's lifespan, these elements feature double-corrosion protection and isolation of the free length from the bonded zone. They are tested to 133% of the design lock-off load.
Temporary passive anchors
For staged open-cut excavations in Montreal, a cost-effective option uses passive bars that generate resistance via soil deformation ahead of the failure plane. Inclinometer monitoring is employed to ensure movements remain within pre-agreed limits with neighboring property owners.
Top questions
What is the difference between an active and a passive anchor?
Active anchors are tensioned against the structure right after installation, applying pre-compression to the soil or rock and controlling wall deflection immediately. In contrast, passive anchors only generate resistance after soil movement and anchor deformation occur. For Montreal excavations, active anchors are usually chosen for permanent basement walls where minimal movement is critical, while passive anchors suit temporary cuts where some relaxation is tolerable.
How do you determine the bond length in Montreal's Champlain clay?
The bond length is determined from an undrained shear strength profile derived from in-situ tests, commonly CPT or field vane. A reduction factor is applied to account for fissuring and post-peak strength reduction, and the estimate is validated via on-site pull-out tests on sacrificial anchors prior to production drilling. Typically, the stiff crust layer permits shorter bond lengths compared to the underlying soft clay.
What is the typical cost range for an anchor design and testing package?
For a comprehensive package that includes geotechnical investigation review, load-transfer analysis, anchor layout, and on-site proof testing supervision, projects in the Montreal area typically cost between CA$1,400 and CA$5,110, varying with anchor count and soil profile complexity.
