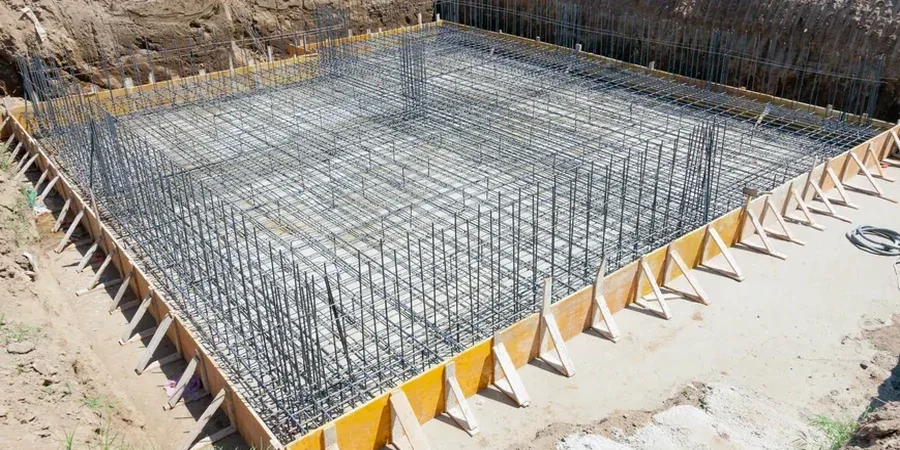

When the National Building Code of Canada (NBCC 2020) governs structural design on compressible clay, raft foundations shift from an option to a necessity. In Montreal, the legacy of the post-glacial Champlain Sea left thick deposits of sensitive silty clay across the island and the South Shore. These soils consolidate under load, causing differential settlement that isolated footings simply cannot manage. A properly engineered mat foundation distributes structural weight so evenly that bearing failures become rare, even where undrained shear strength drops below 40 kPa. Our laboratory runs every consolidation test under CSA + ASTM D2435 to feed the settlement model, and we cross-check results with in-situ permeability field data to avoid overestimating the drainage rate during staged loading.
A well-designed raft on Champlain clay can limit differential settlement to under 25 mm across a 40 m footprint — provided the consolidation model captures the preconsolidation pressure drop at mid-depth.
Service characteristics in Montreal
Critical ground factors in Montreal
The sensation when a drill rig moves through the upper desiccated crust into soft grey clay is distinct: torque decreases, the sampler advances with minimal force, and the retrieved core indicates a 60% water content, highlighting that consolidation settlement will be the main concern. For a recent project in Griffintown, we deployed a CPTu truck alongside standard SPT borings to measure pore pressure response during penetration. The data revealed that the clay was slightly overconsolidated near the surface but normally consolidated below 8 m, a condition that leads to long-term secondary compression if a structural void form is not included beneath the slab in the raft design. Neglecting this aspect in Montreal can result in an extra 15 mm of settlement over ten years, sufficient to damage MEP risers in a 30-storey tower. We incorporate the corrected cone resistance and N₆₀ blow counts into a PLAXIS 3D model that simulates staged excavation, raft casting, and full superstructure load, identifying any area where the bearing capacity safety factor drops transiently during construction.
Our services
In Montreal's soft clay environment, a raft foundation necessitates coordination among geotechnical investigation, structural modeling, and construction-phase monitoring. The following services address the key steps from soil characterization to slab performance verification.
3D Soil-Structure Interaction Modeling
Finite element analysis using PLAXIS 3D or SAFE integrates layered soil stiffness derived from consolidation and triaxial tests. The model predicts total and differential settlement, raft bending moments, and contact pressure distribution under service and seismic load combinations as per NBCC.
Subgrade Reaction Modulus Calibration
ASTM D1195 field plate load tests are correlated with CPTu and pressuremeter data to obtain a spatially variable kₛ matrix. This approach avoids the oversimplification of a uniform modulus and enhances the accuracy of the structural engineer's slab-on-grade design.
Construction-Phase Settlement Monitoring
Deep benchmark rods, magnetic extensometers, and precise leveling points are installed prior to raft casting. Monitoring continues during superstructure erection and for 12 months after occupancy, with data reported against the predicted time-settlement curve.
Top questions
What is the typical cost range for a raft foundation design in Montreal?
For a standalone geotechnical investigation and design package covering a raft foundation in Montreal's clay terrain, the fee usually ranges from CA$1,640 to CA$5,730. The exact amount depends on the number of borings, the depth needed to reach competent till, and whether CPTu or pressuremeter testing is included. Larger footprints with complex column grids naturally demand more modeling hours.
How does the Champlain Sea clay affect raft foundation performance in Montreal?
The Champlain Sea clay is a sensitive, slightly overconsolidated deposit where natural water contents often exceed the liquid limit. Under a raft foundation, it experiences both primary consolidation—which can take months due to low permeability—and secondary compression that persists for years. A design that ignores secondary compression will underestimate long-term settlement, which is why we incorporate creep parameters from incremental loading oedometer tests in the settlement forecast.
When is a raft foundation preferable to deep piles in Montreal?
A raft becomes the preferable solution when the competent bearing stratum (glacial till or bedrock) lies deeper than about 15–20 m, making piling uneconomical, or when the structure footprint is large enough that the raft can distribute the load over a wide area. It is also chosen where groundwater control for a deep excavation would be costly. The final decision depends on the undrained shear strength profile and tolerable settlement criteria from the structural engineer.
What QA/QC standards apply to raft foundation concrete and reinforcement in Quebec?
Concrete must comply with CSA A23.1 and A23.2, with the exposure class determined by the sulfate content in Montreal's native soils—often Class S-2 or S-3 per CSA A3001. Reinforcing steel follows CSA G30.18 for 400W or 500W grade bars. Our scope covers the geotechnical design parameters; the structural engineer of record specifies the reinforcement schedule and concrete cover, while we verify that subgrade preparation achieves the assumed modulus before the mud slab is poured.
